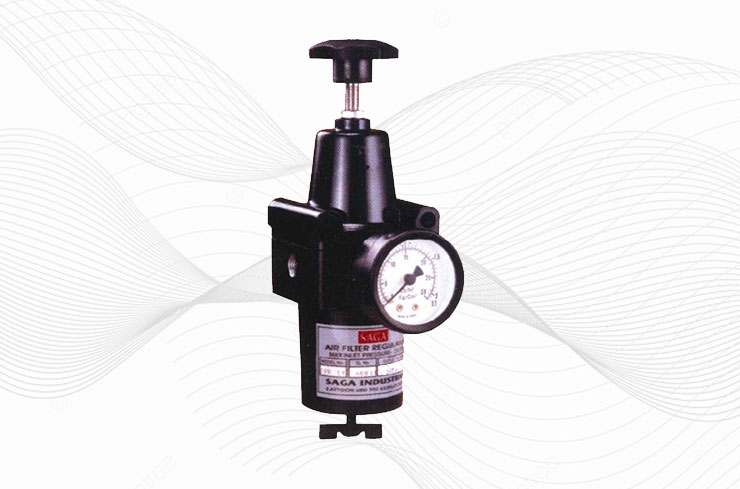

Air Filter Regulator
In the current scenario, Industries and research institutions are realizing the significance of filtration and regulated line pressure. A comparatively less than optimal strategy often leads to constant shut down, maintenance amongst several issues. Compressed air does not come in cheap. By reconfiguring the line pressure to the working pressure, the total cost of compressed air may be reduced.
SAGA Air Filter Regulators are integrated for high-efficiency filtering and accurate compressed air pressure management. It is designed to be very small in order to conserve space, and it ensures considerable reductions in air consumption and consistent equipment performance. Specially designed for general-purpose applications in plants as well as accurate and consistent applications in Pilot controllers, Air-actuated Control Valves, Actuators, Positioners, and Pneumatic Instruments etc.
| SPECIFICATIONS | |||
|---|---|---|---|
| Max Inlet Pressure | 250 Psi (18 kg/cm2 ) | ||
| Outlet Range | 0-30, 0-60, 0-100, 0-150 Psi | ||
| End connections | 1/4," 1/2," 3/8," 3/4," 1" NPT(F)/BSP(F) |
||
| Filter | 5, 10, 15, 25, 50 Microns | ||
| Bowl capacity | 130 cc (Approx.) | ||
| Weight | 750 Grams (Approx.) | ||
| Temperature | Upto 80° C | ||
| MATERIALS | |||
|---|---|---|---|
| Body | Pressure Die Cast Aluminium (Optional-Stainless Steel) | ||
| Diaphragm | Nylon Impregnated Neoprene (Optional-Viton) | ||
| Oring | Neoprene(Optional-Viton) | ||
| Valve Spring | Stainless Steel | ||
| Main Valve | Neoprene moulded on Stainless steel stem | ||
| Drain Cock | Stainless Steel | ||
| MODEL NUMBER | PRESSURE RANGE | CONNECTION |
|---|---|---|
| SFR 13 | 0 - 30 PSI (0-2.1 Kg/Cm2) | 1/4" |
| SFR 16 | 0 - 60 PSI (0 - 4.2 Kg/Cm2) | 1/4" |
| SFR 10 | 0 - 100 PSI (0 - 7 Kg/Cm2) | 1/4" |
| SFR 15 | 0 - 150 PSI (0 - 10.6 Kg/Cm2) | 1/4" |
| SFR 20 | 0 - 100 PSI (0 - 7 Kg/Cm2) | 1/2" |
| SFR 25 | 0 - 150 PSI (0 - 10.6 Kg/Cm2) | 1/2" |
| SFR 80 | 0 - 100 PSI (0 - 7 Kg/Cm2) | 3/8" |
| SFR 85 | 0 - 150 PSI (0 - 10.6 Kg/Cm2) | 3/8" |
| SFR 30 | 0 - 100 PSI (0 - 7 Kg/Cm2) | 3/4" |
| SFR 35 | 0 - 150 PSI (0 - 10.6 Kg/Cm2) | 3/4" |
| SFR 40 | 0 - 100 PSI (0 - 7 Kg/Cm2) | 1" |
| SFR 45 | 0 - 150 PSI (0 - 10.6 Kg/Cm2) | 1" |
